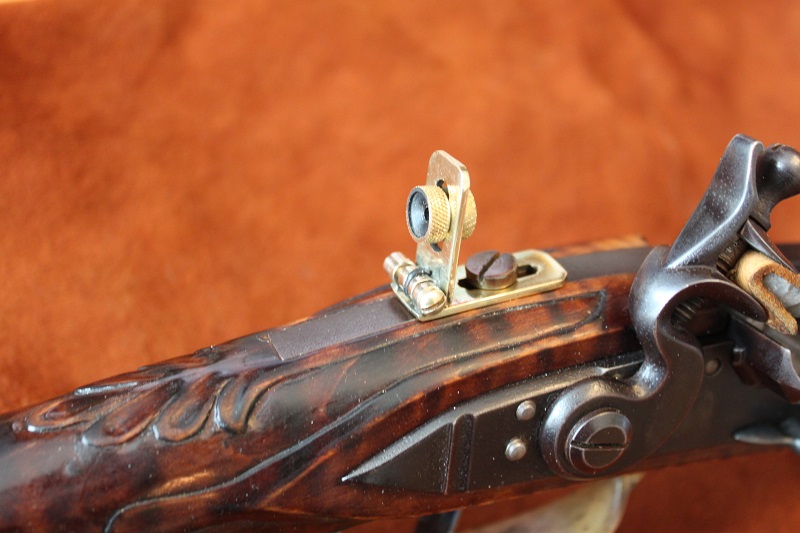

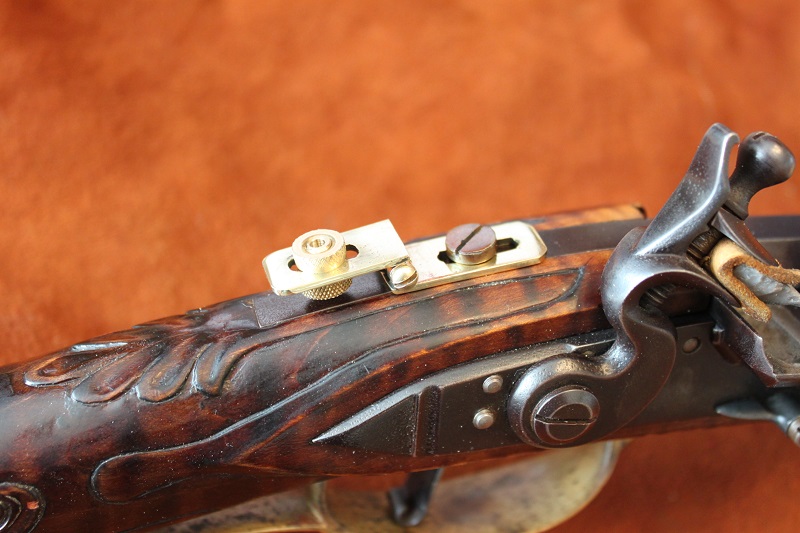

This sight requires no modification to your rifle and is intended to be used in conjunction with the existing rear barrel sight. Simply flip it up for longer shots or better sight definition.
- The base is slotted to allow for differences in tang screw location and is slightly curved so as to lay flat on your curved tang.
- Windage is adjustable by turning the hinge screw.
- Elevation is adjustable by moving the aperture up or down on the staff.
- The aperture disc has been blackened to reduce sun glare. The standard aperture diameter is .070" and can be made to your specification up to 0.110".

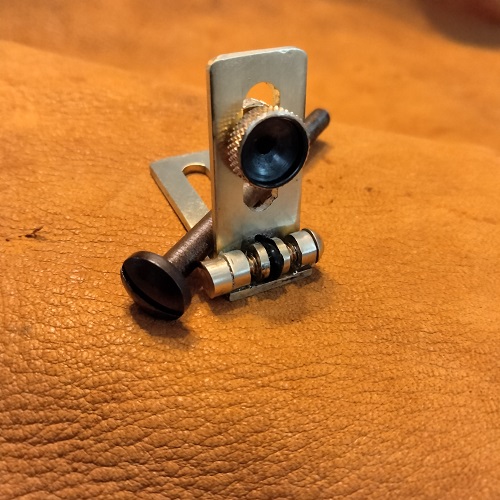

- The standard sight is sized for an 8-32 tang screw and an optional flat headed 8-32 screw is available which provides a more secure mounting. It will be necessary for you to cut it to the proper length.
Please note: Some European made guns use a metric tang screw. Let me know if ordering for one of these so the sight base can be correctly sized and omit the unneeded 8/32 screw.
Sight alone - $80 plus $7 shipping
Sight with 8-32 mounting screw - $83 plus $7 shipping
Additional aperture sizes 0.090" or 0.110" - $10
Note: The ordering links below are for Paypal. For an alternative payment method money orders may be sent to Wilderness Solutions, PO Box 401, Shortsville, NY 14548.
Shipping time is currently 7 - 10 days.
Any questions please contact us - sales@wildersol.com
Folding peep sight with 8-32 screw - $83 plus $7 shipping.
Folding tang peep sight for muzzle loading rifle
Peep sight alone - $80 plus $7 shipping (See comment below) *
Additional Aperture 0.090" - $10
Additional Aperture 0.110" - $10
* If you intend to mount the sight using your existing tang screw and that screw size is something other than an 8-32, please let me know the size so the sight base cane be made to the correct dimension.
